291018 – Single Tank Electric Fryer – 9.5 Litre (Oil) with Drain Tap | EF-131V-P

Model Number: EF-131V-P

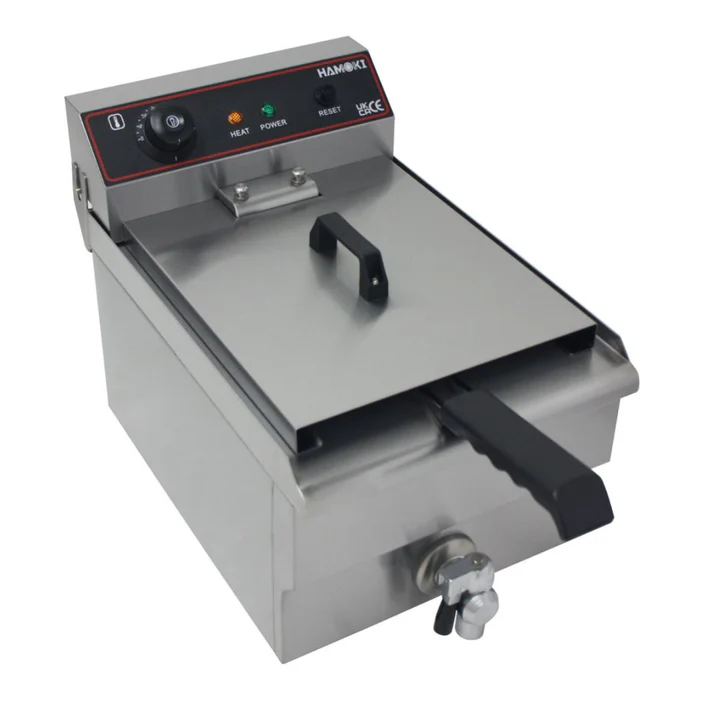

Introducing the Hamoki EF-V-P Countertop Single Tank Electric Fryer. Combining a refreshed design with key functional improvements to deliver more reliable performance, improved durability, safety, and day to day usability in demanding commercial kitchens.

Featuring a modernised exterior, the fryer incorporates a redesigned heating head housing with a lift up and rotating mechanism. This ensures improved alignment with the internal microswitch safety system, enhancing the effectiveness of the built in safety interlock, which automatically cuts power when the heating head is lifted, a key protection feature in professional environments.

Constructed from quality stainless steel, these compact units are built for efficiency and long service life. The lift up heating head also provides easy access for cleaning and maintenance, helping to minimise downtime.

• Adjustable EGO thermostat for precise temperature control
• Automatic heat cycling for consistent results
• Heating head safety interlock system
• Temperature Range: 60～200℃
• Durable stainless steel construction
• Compact, space saving design

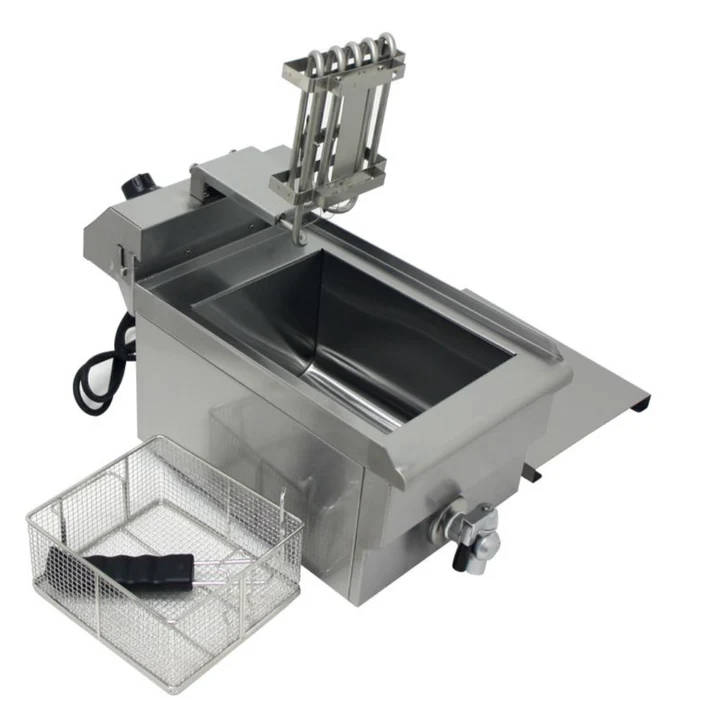

• Easy to clean lift up heating head
• Available in single and twin tank models

This product is covered with a Manufacturer’s 1 Years Parts Warranty.

Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.

Specifications

• Model: EF-131V-P
• SKU: 291018
• Tanks: 1

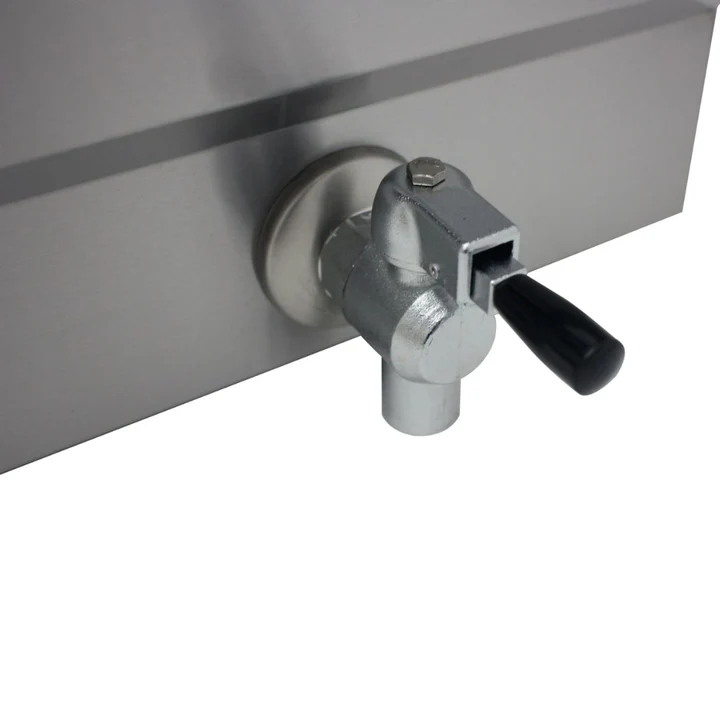

• Drain Tap: Yes
• Control: 1
• Temperature: 60-200℃
• Max Oil Capacity: 9.5 litres
• Tank Capacity: 13 litres
• Power supply: 1 x 13 Amp 3 pin plug
• Power: 3 kW / 220-240 v / 50 Hz
• Net weight: 8kg
• Gross weight: 9kg
• Fryer Basket Size (mm): 220w x 210d x 120h
• Dimensions (mm): 310w x 505d x 350h
• Material: Stainless Steel
• Warranty: 1 year Parts Warranty

CIRCUIT DIAGRAM

EXPLODED VIEW AND PARTS LIST
